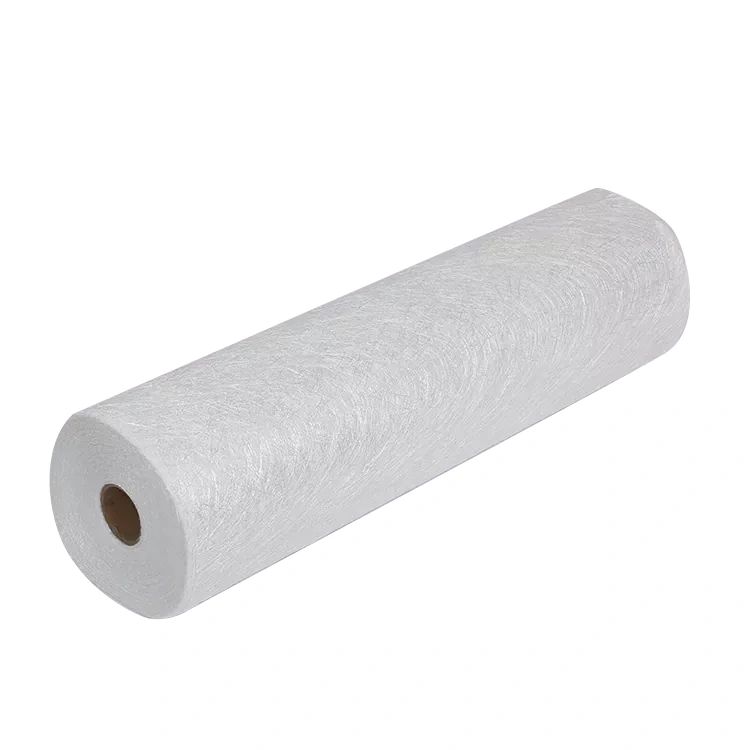

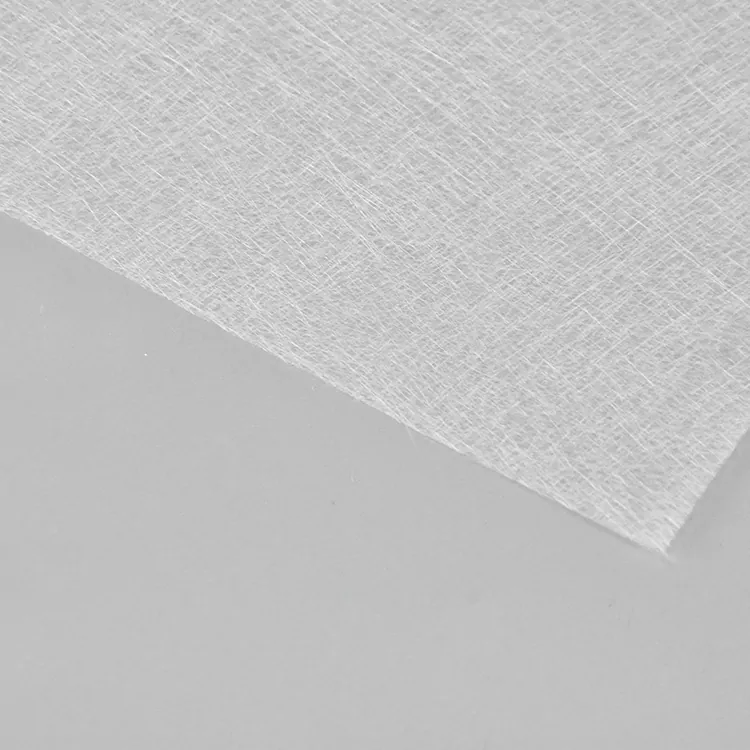

450g Fiberglass Chopped Strand Mat

450g Fiberglass Chopped Strand Mat is a nonwoven E-Glass reinforcement material with an area weight of 450 g/m². Compared with 100 g/m², 150 g/m² and 225 g/m² mats, the higher area weight provides more glass fiber per square meter, which can be useful when a laminate design requires substantial reinforcement with fewer individual mat layers.

The material is intended for composite manufacturing where chopped strand mat is incorporated into a resin-based laminate. Typical applications include FRP tanks and vessels, pipes, marine components, cooling tower parts and other molded fiberglass structures.

How Area Weight Affects Laminate Construction

Area weight indicates the mass of glass fiber mat per square meter. A 450 g/m² mat contains more reinforcement material per unit area than lighter grades, so the selected weight can affect the number of layers required to reach a specified laminate construction.

Chopped strand mat is normally combined with other reinforcement materials rather than used as the only structural layer. The actual laminate schedule may include different mat weights, woven fabrics or other reinforcements depending on the required thickness, resin content, manufacturing process and finished-part design.

The mat weight alone does not determine the final mechanical performance of a composite. Fiber content, resin selection, curing conditions, laminate structure and manufacturing quality all contribute to the finished result.

Randomly Distributed Fibers for Composite Lamination

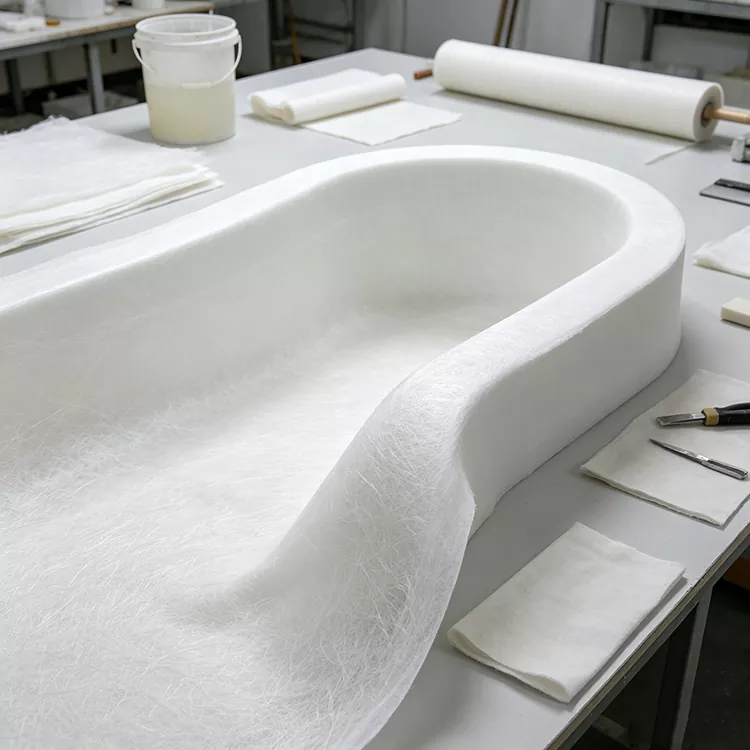

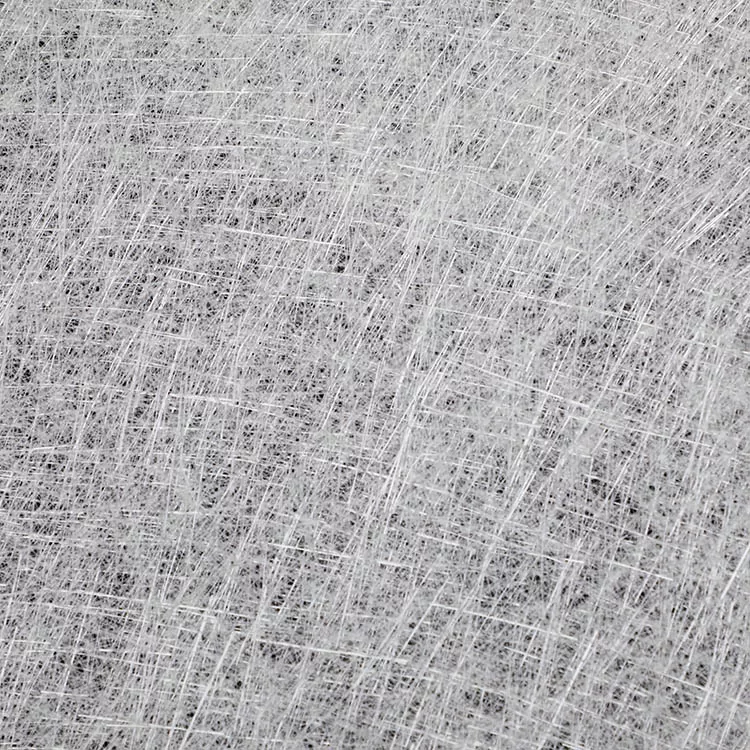

The glass fibers are randomly distributed within the mat instead of being arranged in a fixed woven direction. This structure allows the material to conform to different mold shapes and makes it suitable for layered laminate construction.

It can be cut and fitted to the required mold area before resin application. The format is particularly practical for:

· Curved and irregular molds

· Large-area composite surfaces

· Corners and transitions

· Multi-layer laminate structures

· Molded FRP components

The final reinforcement arrangement should be determined according to the geometry and performance requirements of the finished composite part.

Typical Applications

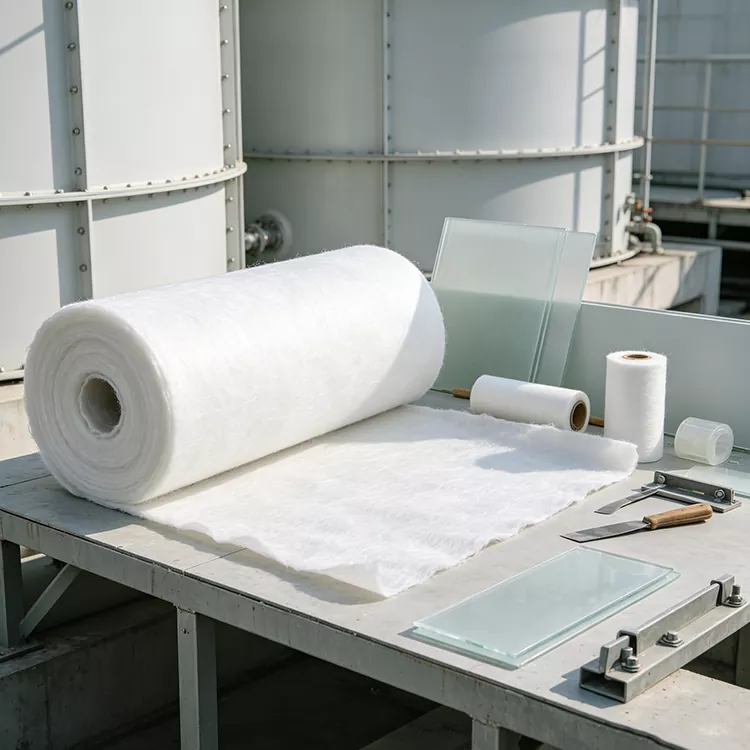

FRP tanks and vessels - used as part of composite wall and laminate reinforcement structures.

FRP pipes and corrosion-resistant equipment - incorporated into layered fiberglass reinforcement systems.

Marine structures - suitable for selected hull sections and molded composite components.

Cooling tower components - used in fiberglass-reinforced molded structures.

Industrial FRP parts - applicable where a 450 g/m² reinforcement layer fits the specified laminate schedule.

Resin Compatibility

The 450g Fiberglass Chopped Strand Mat from Yuruis is compatible with UP, VE, EP and PF resin systems. Unsaturated polyester (UP) is commonly used for general FRP manufacturing, while vinyl ester (VE) can be selected for applications where greater chemical and corrosion resistance is required.

Epoxy and phenolic resin systems may also be considered when their specific processing and performance requirements match the reinforcement. Resin selection should be based on the service environment, curing process and requirements of the finished composite.

Technical Specifications

Supply and Customization

Yuruis supplies chopped strand mat for composite manufacturers working with defined laminate schedules and reinforcement requirements. Standard specifications can be supplied for regular production, while width and roll requirements can be discussed for customized orders.

The listed production capacity is 4,000 tons per year. Customers can provide the required area weight, width, roll length, resin system, application and expected quantity when requesting material information or a quotation.

FAQ

What is the difference between 450 g/m² and lighter chopped strand mat?

A 450 g/m² mat contains more glass fiber per square meter than lighter grades. This can reduce the number of individual mat layers needed when the laminate design calls for a relatively high reinforcement weight. The appropriate area weight should be selected according to the laminate schedule rather than weight alone.

Is this material suitable for FRP tanks and pipes?

Yes. It can be incorporated into layered reinforcement structures for FRP tanks, vessels, pipes and related composite equipment. The final laminate construction should be determined according to the required thickness, resin system and service conditions.

Can it be used with vinyl ester resin?

Yes. Vinyl ester is one of the compatible resin systems listed for this material. The final resin selection should consider the chemical environment, curing conditions and performance requirements of the finished part.

Can the mat be cut before lamination?

Yes. Cutting is listed as an available processing option. The material can be prepared to suit the required mold area and laminate layout before resin application.

Can the width be customized?

Yes. The listed width is 1.04 m, with customized widths available according to production requirements. The required width should be confirmed together with the application, roll length and expected quantity.

Does a higher area weight automatically provide higher finished-part strength?

No. Area weight is only one factor in composite performance. Finished-part strength also depends on glass fiber content, resin system, fiber arrangement, laminate design, curing conditions and manufacturing quality.
