Carbon Fiber Thermal Insulation Felt for Induction Furnaces

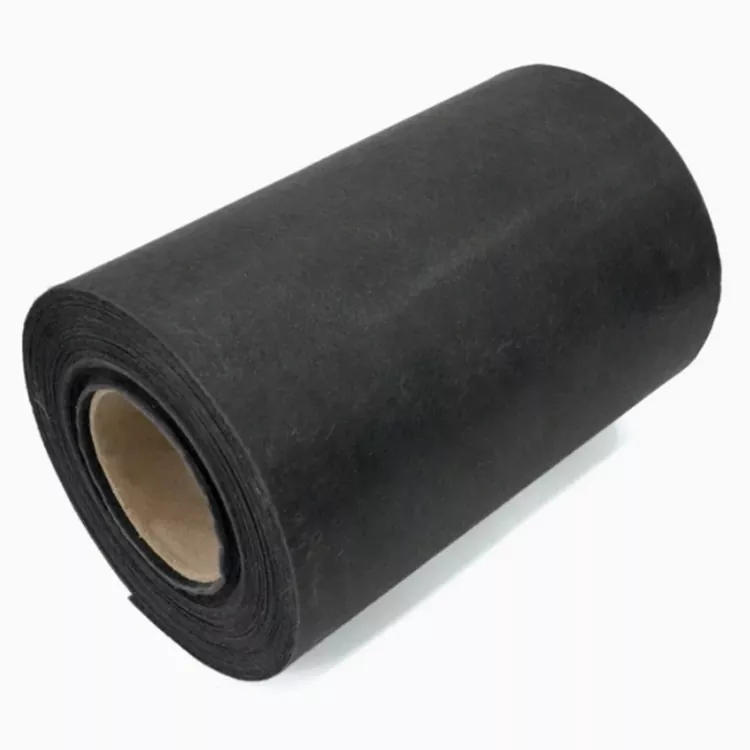

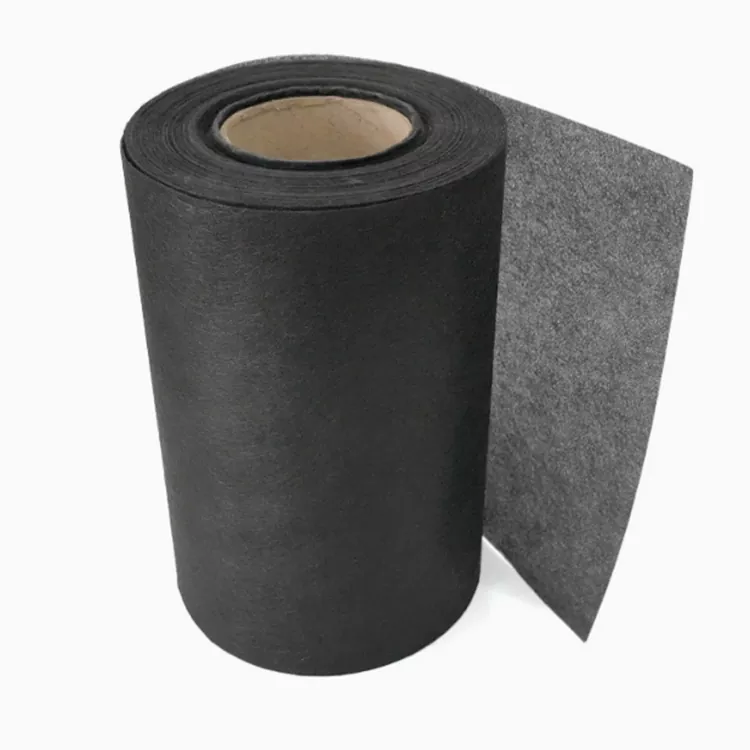

Carbon Fiber Thermal Insulation Felt for Induction Furnaces is a carbon fiber felt used as insulation in high-temperature furnace equipment. It is supplied in sheet form and can be cut into layers, strips or other shapes for installation. Width, thickness, length and dimensions are available according to the required furnace structure.

Furnace Insulation Structure

A furnace insulation system normally contains several layers. The heating zone, insulation materials, support structure and outer shell perform different functions.

Carbon fiber felt is used as a flexible insulation layer around the hot zone, behind another insulation material or between different insulation layers. Its position is determined by the furnace construction and available installation space.

Thickness and density should be matched with the installation position. A thin sheet around a curved section requires a different specification from a thicker layer used in a furnace lining.

The furnace drawing or existing insulation layout can be used to determine the required dimensions before production.

Carbon Fiber Felt Structure

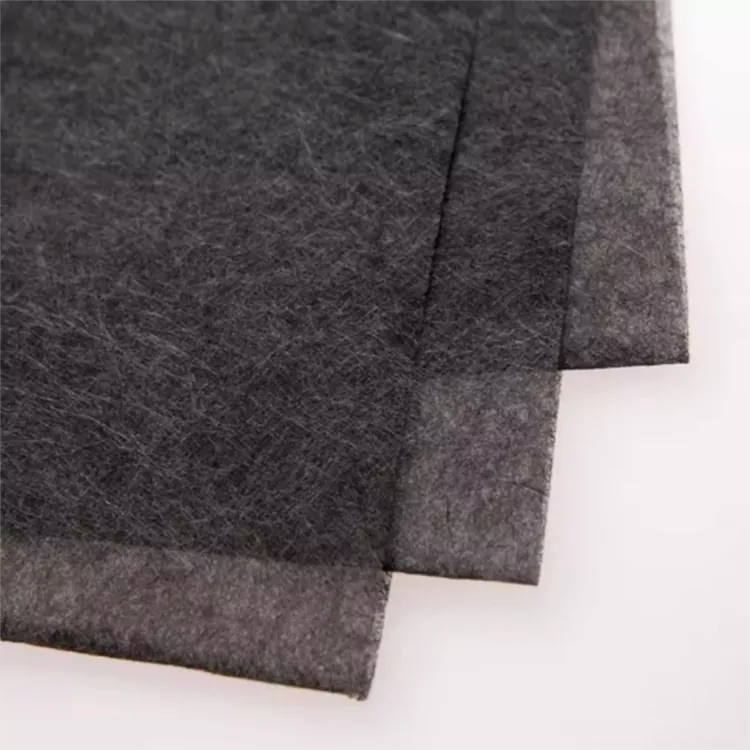

The material is made from carbon fiber in a felt structure. It is flexible and can be cut, layered and fitted to non-flat furnace surfaces.

This form is useful where insulation needs to follow curved walls, corners or confined areas. Several layers can also be combined when the furnace design requires a greater insulation thickness.

The material specification is related to the furnace temperature, atmosphere, pressure, installation position and surrounding materials. These conditions should be reviewed together when determining the required thickness and density.

Typical Furnace Applications

Induction Furnaces

Carbon fiber felt can be used for insulation around the heating zone and other designated sections of an induction furnace. The sheet can be cut to match the furnace geometry.

Vacuum Furnaces

In vacuum equipment, insulation materials are selected according to the vacuum environment, working temperature and furnace construction. Carbon-based felt can form part of a multilayer insulation structure.

Heat-Treatment Equipment

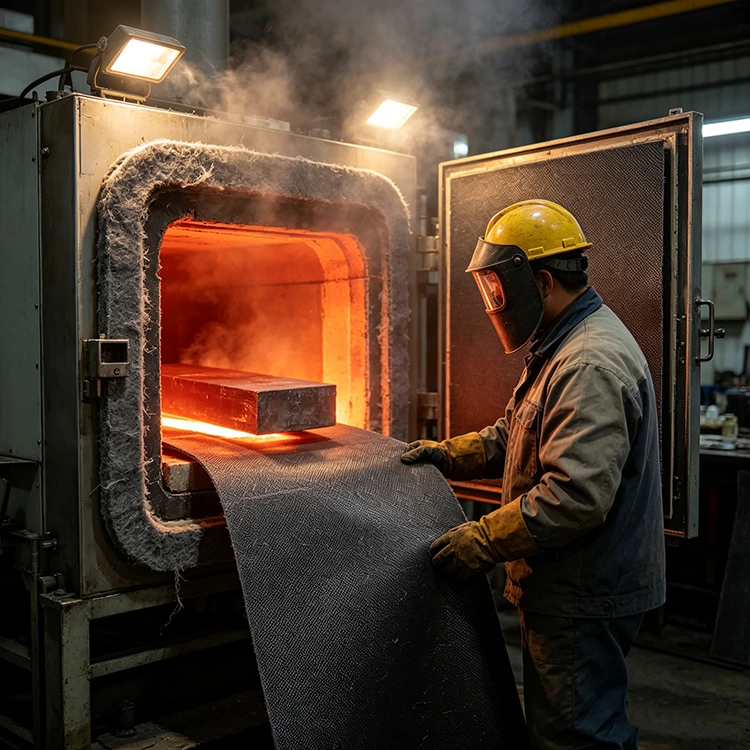

The felt can be used as an insulation or backing layer around the working chamber and other areas where flexible insulation is required.

High-Temperature Processing Equipment

Applications also include selected equipment for powder metallurgy, ceramic processing and carbon-material processing. Material selection depends on the process conditions and furnace design.

Specification Selection

The required felt specification is normally determined by the furnace type, operating conditions and installation dimensions.

For non-standard shapes or installation areas, a furnace drawing, insulation layout or existing sample can be used to confirm the required dimensions.

Flexible Felt and Rigid Insulation

Flexible felt and rigid insulation serve different installation requirements.

Carbon fiber felt can be cut and fitted around curved surfaces, corners and narrow spaces. It does not provide the self-supporting structure of a rigid insulation component.

Rigid materials are used where dimensional stability or mechanical support is required. A furnace may use both types in different positions within the same insulation system.

The choice should follow the installation position, required thickness, available space and operating conditions.

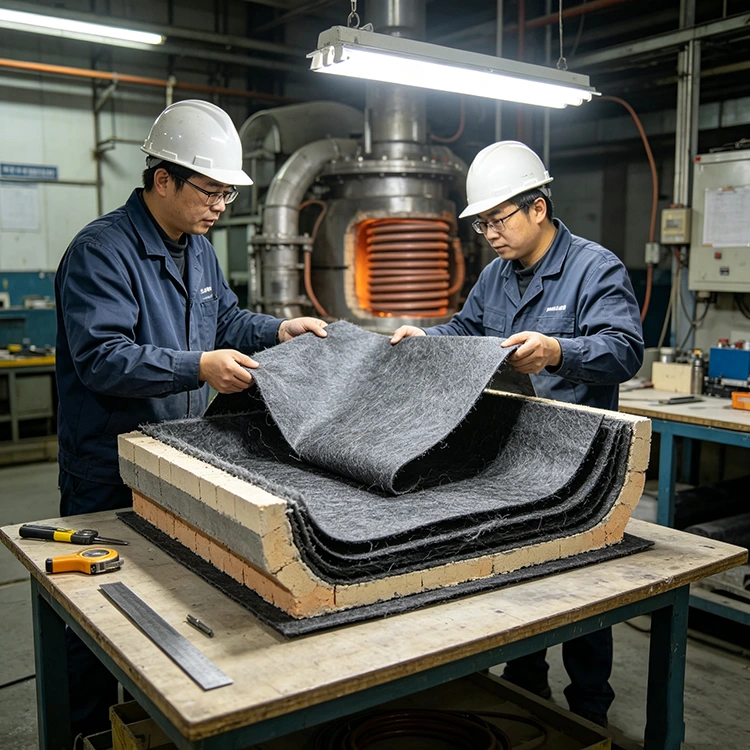

Cutting and Installation

The felt is supplied in sheet form and can be cut to the required dimensions. Depending on the furnace structure, it can be prepared as sheets, strips or shaped sections.

A simple processing sequence is:

Measure → Cut → Shape → Layer → Install

When the material is installed around coils, curved walls, corners or narrow spaces, the cut dimensions should match the available installation area.

Drawings or samples can be used when non-standard dimensions or shaped sections are required.

Product Specification

Equipment Applications

This material is used mainly in the construction and maintenance of thermal processing equipment where a flexible carbon-based insulation layer is required.

Induction Furnace Equipment

For insulation layers and thermal barrier sections around designated furnace areas.

Vacuum Furnace Equipment

For selected multilayer insulation structures in vacuum processing equipment.

Heat-Treatment Systems

For insulation sections around the working chamber and other designated areas.

Powder Metallurgy and Materials Processing

For selected high-temperature equipment used in powder metallurgy, ceramic processing and carbon-material processing.

FAQ

What is Carbon Fiber Thermal Insulation Felt for Induction Furnaces used for?

It is used as a flexible insulation material in selected high-temperature furnace equipment. Common forms of use include insulation layers, backing sections and shaped insulation parts.

Can carbon fiber felt be used in an induction furnace?

Yes. It can be installed in designated insulation areas of an induction furnace. The material specification should match the furnace temperature, atmosphere, installation position and surrounding materials.

What is the difference between carbon fiber felt and graphite felt?

Both are carbon-based insulation materials, but their precursor materials and processing methods can differ. Density and other physical properties may also vary, so the material should be selected according to the furnace conditions.

Can the thickness and dimensions be customized?

Yes. The standard widths are 1 m and 1.25 m. Thickness, length and dimensions can be supplied according to the required installation size.

Can the felt be cut into a specific furnace shape?

Yes. Sheet material can be cut into the required dimensions or shape. Drawings or samples are useful for non-standard sections.

What information is needed for a quotation?

The basic information includes furnace type, working temperature, atmosphere, installation position, required thickness, dimensions and quantity. A drawing or existing insulation specification is useful for custom requirements.

Is it suitable for vacuum furnace insulation?

It can be used in selected vacuum furnace insulation structures. The vacuum conditions, operating temperature and surrounding furnace materials should be checked when determining the specification.
