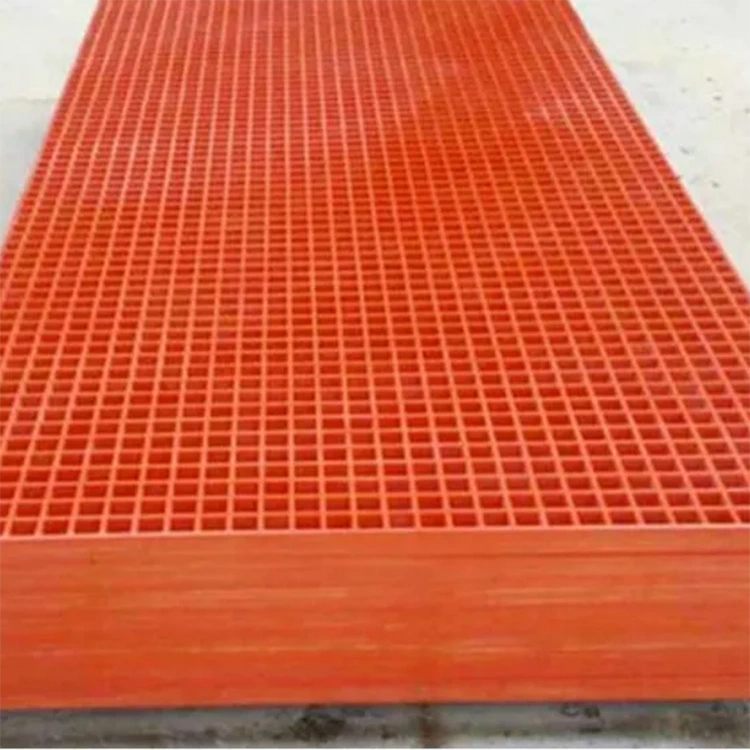

Anti-Slip FRP Grating

For industrial walkways, the problem is often not simply whether a floor can carry a load. Water, oil, cleaning chemicals and process liquids can remain on the surface and make ordinary flooring difficult to walk on.

The open-mesh construction of this Anti-Slip FRP Grating addresses this condition from two directions:

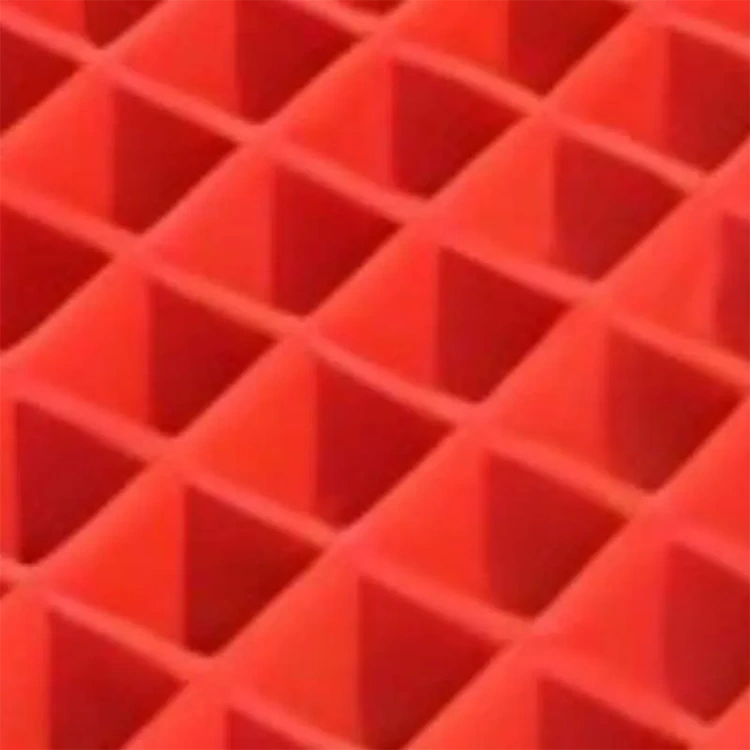

· Molded surface profile provides additional traction for pedestrians.

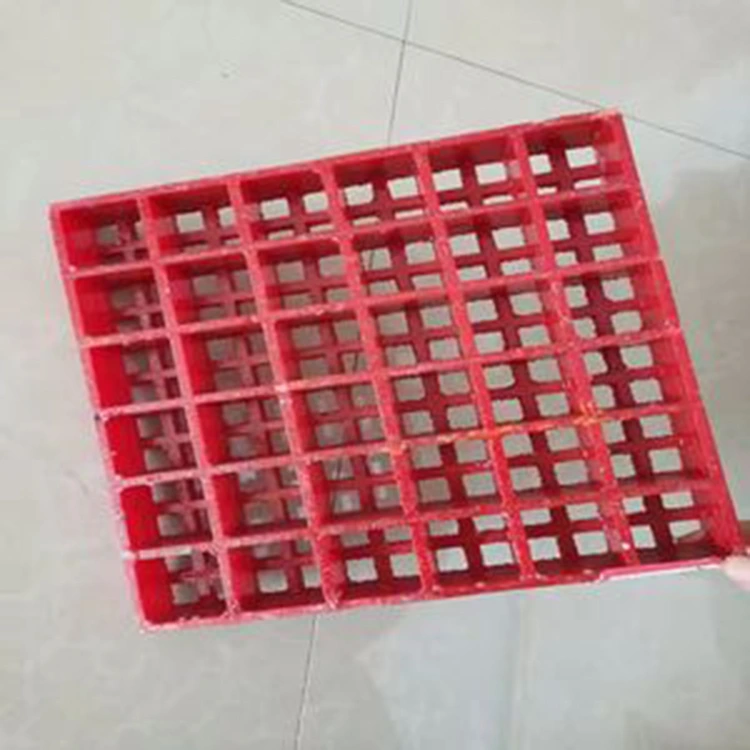

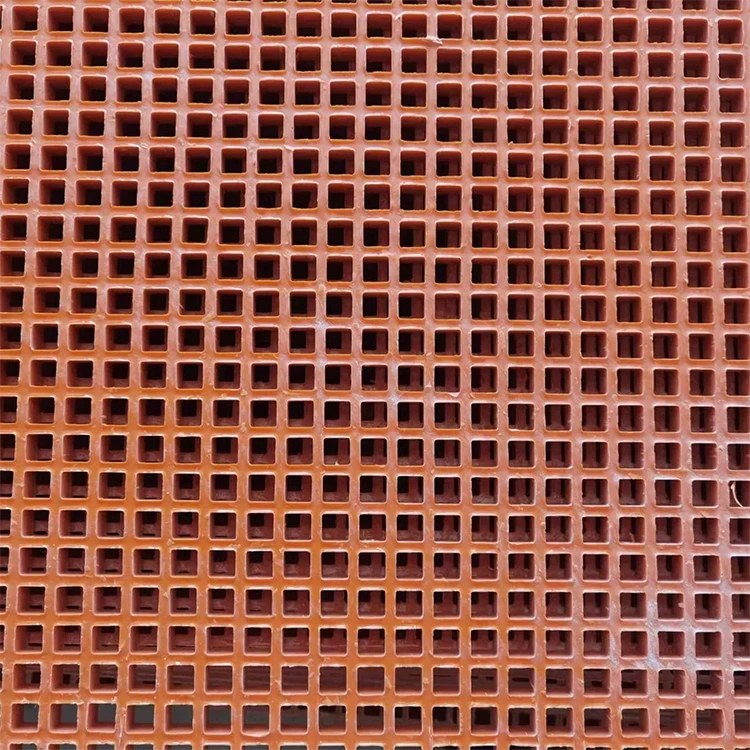

· 38 × 38 mm open mesh allows liquids and debris to drain through the panel.
· FRP construction avoids the rusting problems associated with conventional carbon-steel grating.
· Low weight makes panels easier to transport, cut and install on site.
· Electrical insulation makes FRP suitable for areas where conductive metal flooring is undesirable.

This makes the product particularly relevant to chemical plants, wastewater facilities, industrial construction projects, processing plants and other wet or corrosive working environments.

Specification

The electrical insulation value depends on product configuration and test conditions. Confirm the required value for your application.

Where This Grating Fits in a Project

Plant walkways — Create elevated pedestrian routes around tanks, pumps and processing equipment without introducing conventional steel into corrosive areas.

Maintenance platforms — Suitable for working platforms where drainage and footing are required around operating equipment.

Trench and drainage covers — The open mesh allows water to pass through while providing a removable walking surface.

Stair treads — Panels can be cut and processed for stair applications where slip resistance is an important consideration.

Water and wastewater areas — Useful around treatment tanks, channels and equipment exposed to moisture and chemical agents.

Chemical processing areas — FRP is particularly useful where continuous exposure to corrosive media makes steel maintenance costly.

This 25 mm molded grating is intended for pedestrian and light maintenance access. For heavier loads or longer support spans, a thicker grating or a heavy-duty configuration should be selected.

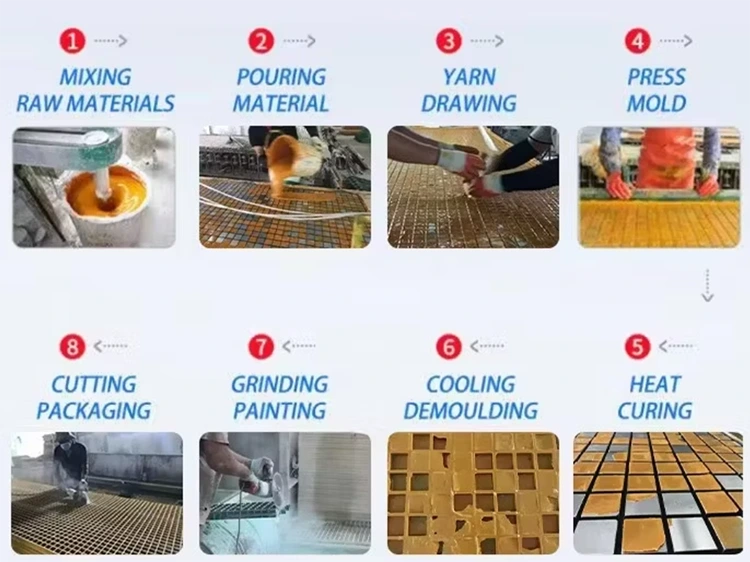

Production Process

Unlike a metal grating assembled from separate load bars, molded FRP grating is formed as an integrated panel.

At Yuruis, the general manufacturing route includes:

Raw material mixing → resin impregnation → fiberglass yarn placement → mold forming → heat curing → demolding and cooling → surface finishing → cutting → inspection and packaging

Custom Processing for Installation

Standard panels are only part of the solution when a grating has to fit an existing plant.

Yuruis can support project requirements involving:

· Customized panel dimensions
· Customized colors
· Cutting to installation dimensions
· Shape modification
· Stair tread preparation
· Trench-cover applications
· Special project specifications

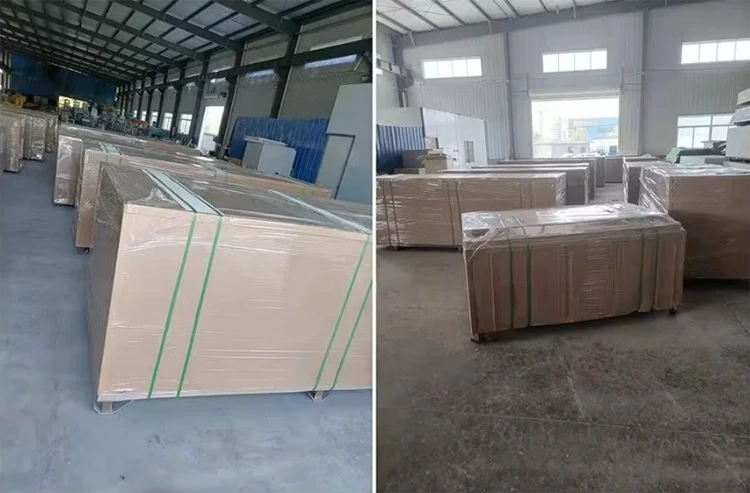

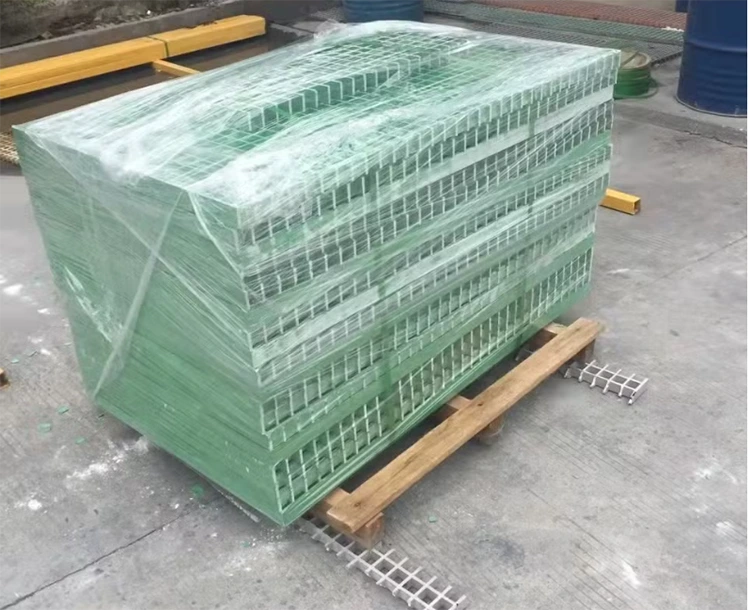

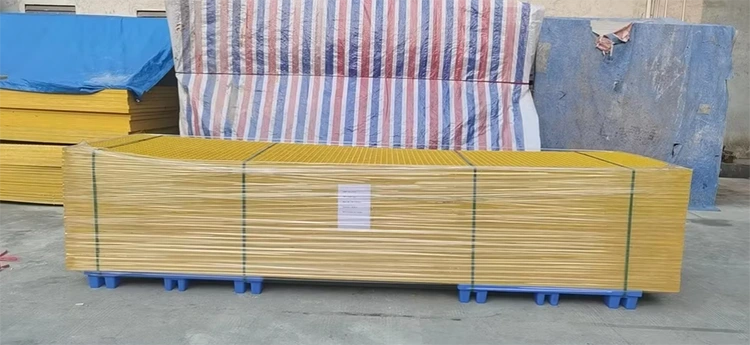

From Production to Shipment

For FRP grating buyers, the finished panel is only one part of the purchasing decision. Panel dimensions, cutting accuracy, packaging and transportation condition can affect installation efficiency after arrival.

Yuruis FRP Grating for Industrial Projects

Yuruis supplies FRP products for industrial applications where corrosion resistance, lightweight construction, insulation and customized processing are important considerations.

For grating projects, we do not recommend selecting thickness or resin solely from the panel name. The actual load, support span, chemical environment and installation method should be considered together.

Our production capacity for FRP grating reaches approximately 200,000 square meters per year, supporting both standard requirements and project-based customized orders.

FAQ

Can the Anti-Slip FRP Grating be cut to size?

Yes. Yuruis supports cutting and customized dimensions, which is useful for trenches, platforms, stairs and equipment areas.

What mesh size is available for this product?

This configuration uses a 38 × 38 mm mesh. Other mesh configurations may be available according to project requirements.

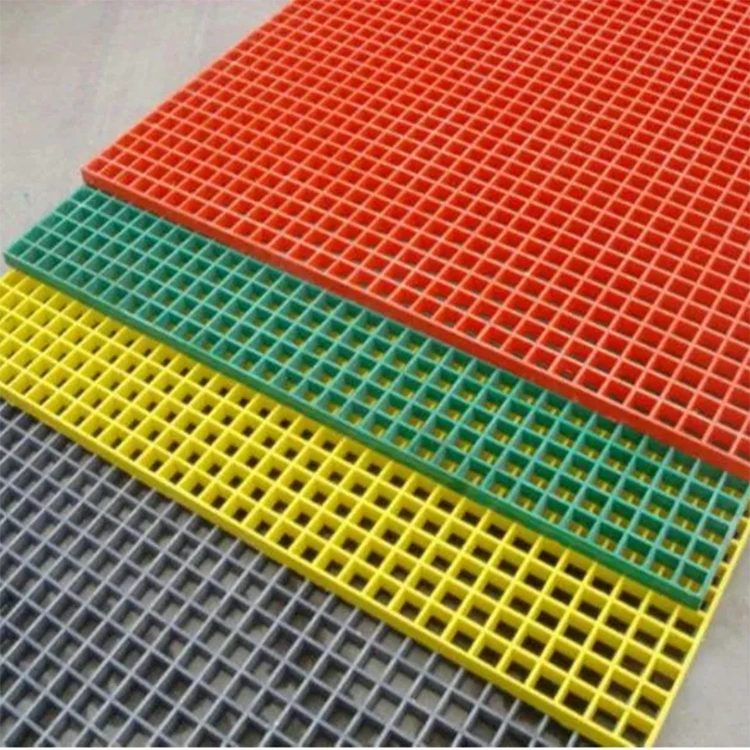

Can I choose the color?

Yes. Standard color options include yellow, red, green, blue and white, with customized colors available depending on the order and production requirements.

Is FRP grating suitable for chemical plants?

It can be, particularly where corrosion resistance is required. However, the correct resin system should be selected according to the specific chemical medium, concentration and operating temperature.

Can you provide a sample before bulk production?

Samples can be discussed before an order. For project purchasing, we recommend confirming the thickness, mesh, resin type, color and surface specification together with the sample.

What information should I send for a quotation?

The most useful information is panel size, thickness, mesh opening, quantity, color, application, support span and chemical/temperature conditions. A drawing or installation layout is even better if available.
