FRP Grating for Sidewalks

For pedestrian walkways in industrial and outdoor environments, grating needs to provide a stable walking surface while allowing rainwater, wash-down water and other liquids to drain through the panel. The panel specification also needs to match the support span, expected loading and surrounding conditions.

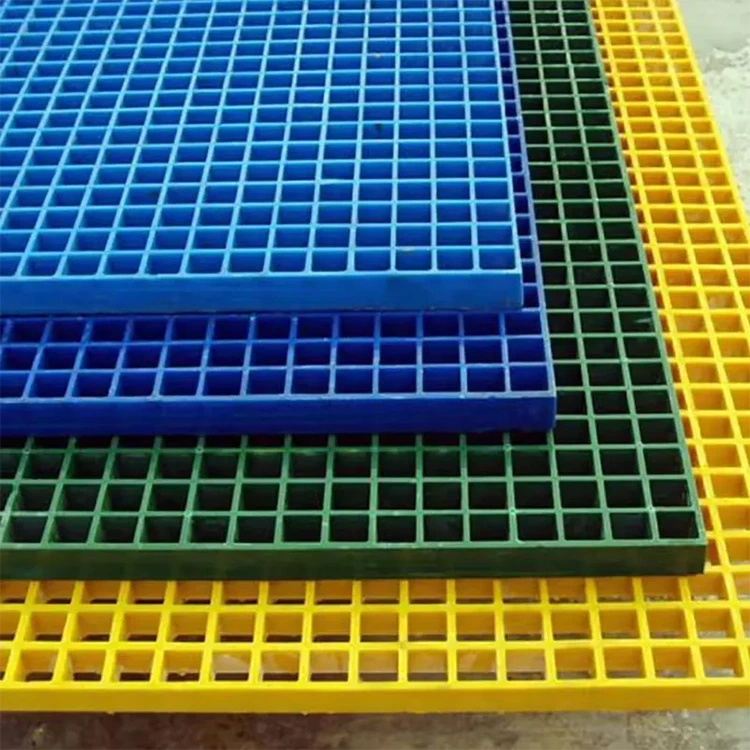

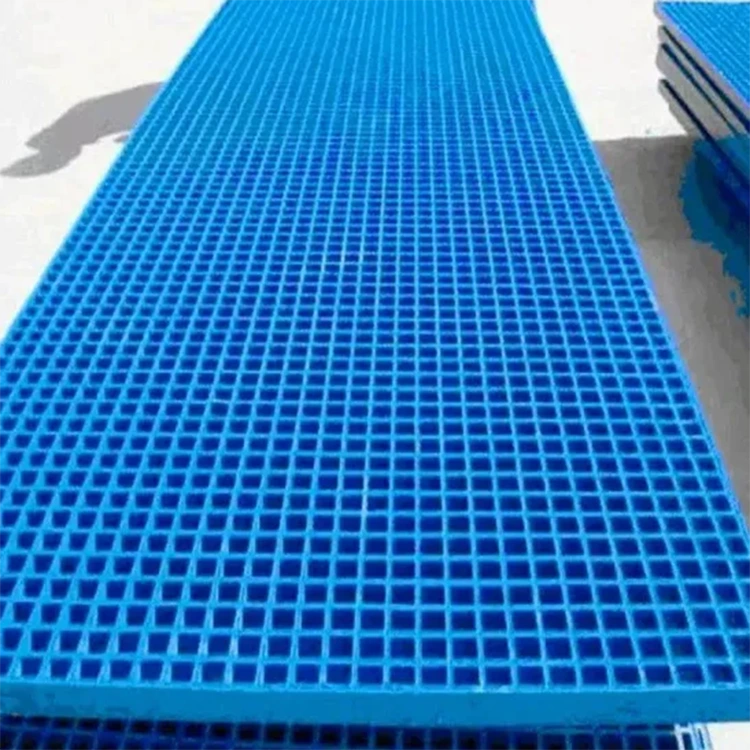

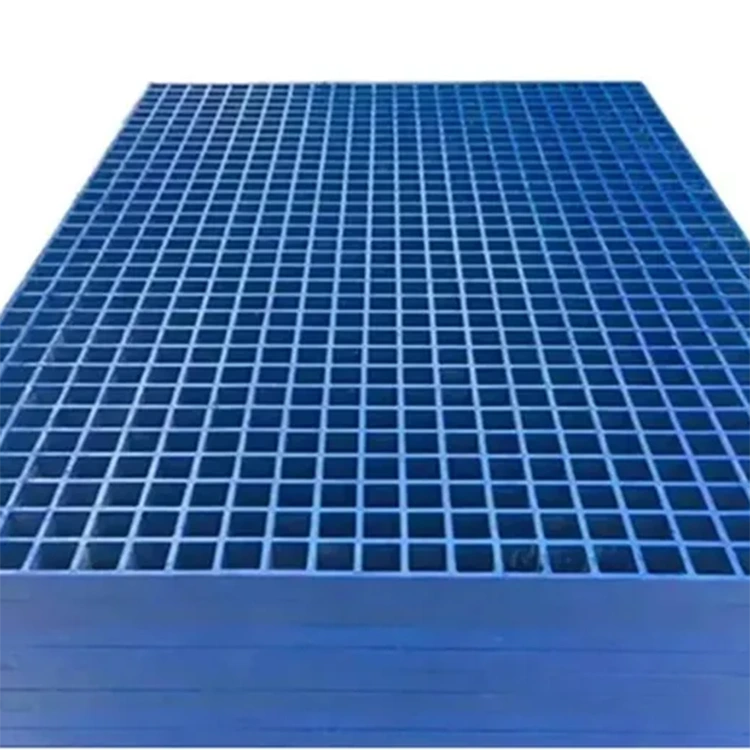

This FRP Grating for Sidewalks uses a 38 × 38 mm molded opening and a 25 mm panel thickness. The open-grid structure supports drainage, while the molded FRP construction provides a non-metallic alternative to conventional steel grating in areas where corrosion resistance and electrical insulation are required.

Product Specification

Surface and Drainage Considerations

The 38 × 38 mm open mesh allows water to pass through the panel instead of collecting on a continuous solid surface. This is useful for walkways exposed to rainfall, equipment wash-down or process water. The open structure also allows dirt and small debris to pass through, although the actual drainage performance depends on the supporting structure and site conditions.

The specified Grade A non-slip surface is intended for areas where pedestrians may encounter moisture. For a particular installation, surface treatment and slip-resistance requirements should be checked against the conditions of use rather than relying on the grating specification alone.

The 25 mm thickness provides the basic panel configuration shown in the product specification. The required panel thickness for a project should be determined together with the support span and design load.

Applications in Industrial and Outdoor Areas

FRP Grating for Sidewalks can be used where pedestrian access is required around equipment, drainage systems or maintenance areas and where a non-metallic grating material is preferred.

Typical applications include chemical and wastewater facilities, industrial plants, outdoor service routes, electrical facilities and construction areas. In these environments, the relevant selection factors may include exposure to chemicals or wastewater, moisture, required walking clearance, support conditions and access frequency.

For electrical areas, the product specification lists 10 kV electrical insulation and an electromagnetism value of 0. These figures describe the supplied product specification; project engineers should verify the complete installation against the electrical requirements and applicable standards before use.

How to Select the Panel for a Walkway

The panel dimensions alone do not determine whether a grating is suitable for a particular walkway. Four project conditions should normally be confirmed before ordering.

Support Span and Loading

First confirm how the panel will be supported and the distance between supports. Pedestrian-only routes, maintenance platforms and areas subject to occasional equipment loads can have different loading requirements. Panel thickness and configuration should therefore be selected according to the actual span and load.

Operating Environment

Next identify the surrounding medium. Outdoor rainwater, wastewater, process chemicals and salt-containing environments can place different demands on the resin system. The stated Diphenyl Ether FRP resin type should be checked against the chemical and temperature conditions of the installation.

Panel Dimensions and Access

Standard panels can be cut for installation, while customized sizes and shapes can be discussed for project layouts. Removable panels may also be useful where access to drainage channels, trenches or equipment below the walkway is required.

Surface Requirements

Where the walkway is regularly exposed to water or cleaning operations, slip resistance should be considered together with drainage. The specified Grade A non-slip performance provides a reference point for this model, while the final requirement should be determined from the site conditions.

Other Uses of the Same Molded Grating

The same molded panel construction can be applied to more than pedestrian sidewalks. Depending on the support arrangement and loading conditions, the grating can also be processed for service paths, maintenance platforms, trench covers, bridge panels, stair treads, drainage areas and industrial flooring.

These applications should not be treated as interchangeable specifications. A panel used over a drainage trench, for example, may have different span and loading requirements from a pedestrian walkway. Project drawings, dimensions and loading information are therefore useful when confirming the appropriate configuration.

Processing and Shipment

Yuruis provides molding, cutting and welding services for grating orders that require further processing before installation. Customized panel dimensions and shapes can be prepared according to the project requirements.

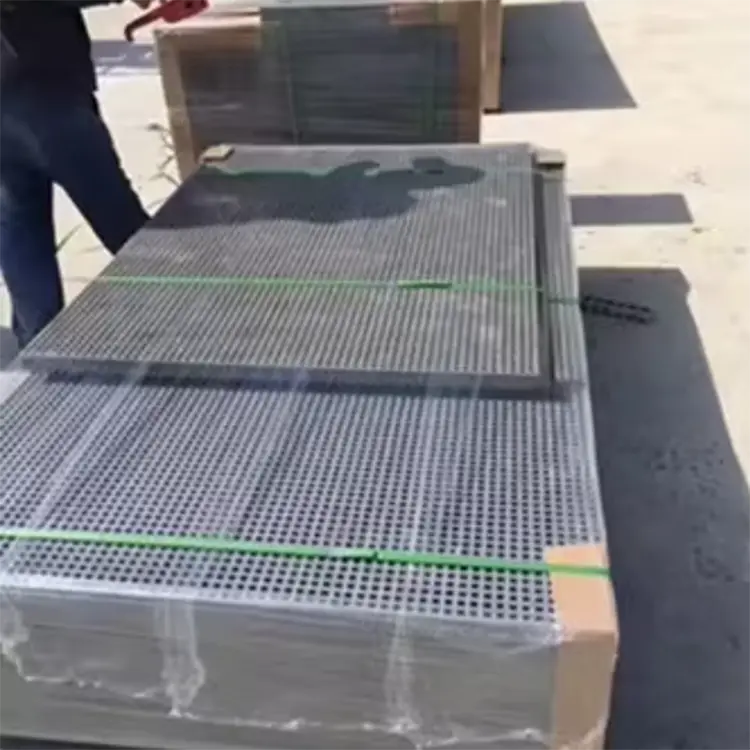

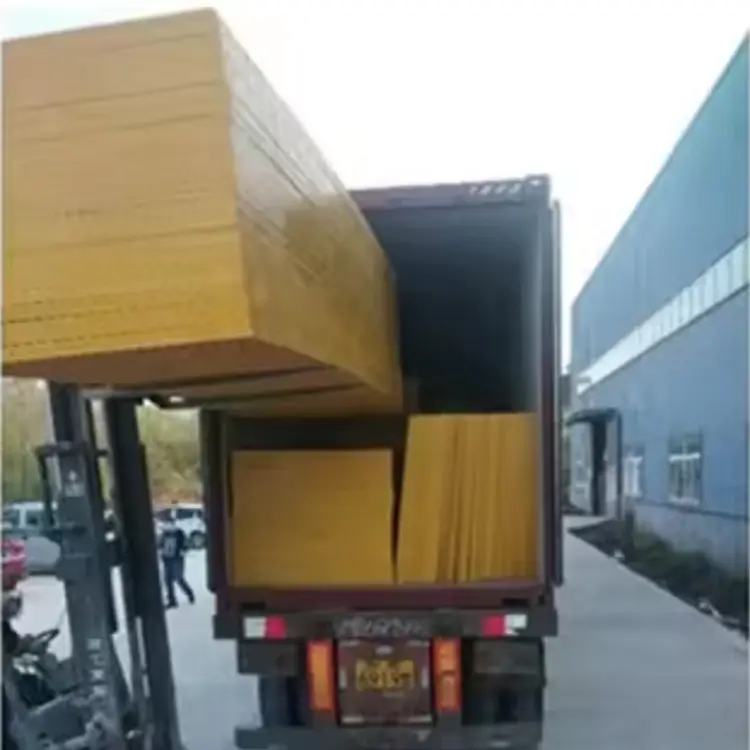

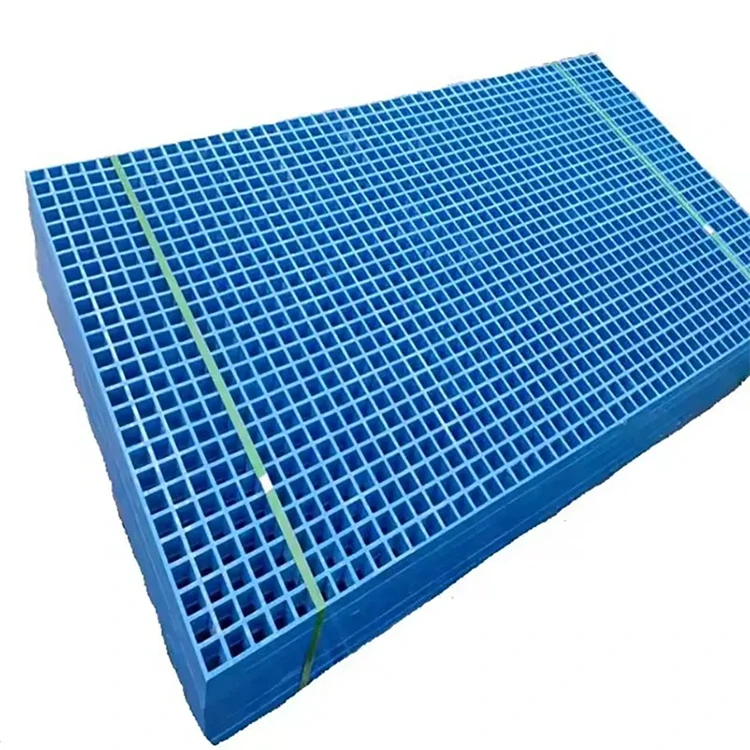

Finished grating is packed on trays for transportation. For customized orders, panel dimensions, processing requirements and packaging arrangements can be confirmed before production so that the delivered panels correspond with the installation plan.

FAQ

What mesh size does this model use?

This model uses a 38 × 38 mm molded mesh. The panel thickness specified for this model is 25 mm.

Is this grating suitable for wet outdoor walkways?

It is designed with an open-grid structure for drainage and has a stated Grade A non-slip specification. For a specific outdoor installation, the support span, loading, drainage arrangement and environmental exposure should be checked before selection.

What standard panel sizes are available?

Common specifications include 1220 × 3660 mm, 1220 × 4010 mm, 1524 × 4000 mm and 1524 × 4010 mm.

Can the panels be cut to a required walkway size?

Yes. Cutting is available, and customized panel dimensions and shapes can be discussed according to the installation layout.

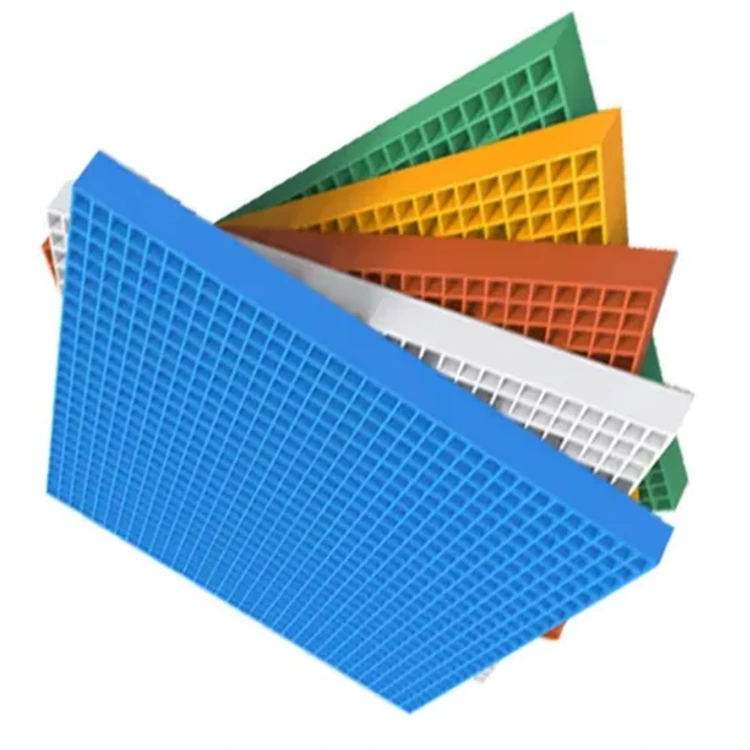

What colors are available?

The listed colors include yellow, red, green, blue and white. Customized color requirements can also be discussed for project orders.

Does the grating provide electrical insulation?

The supplied specification lists 10 kV electrical insulation. The complete installation should be evaluated according to the electrical requirements, operating conditions and applicable project standards.

Can this grating be used for applications other than sidewalks?

Yes. Depending on the support structure and loading conditions, the molded grating can also be processed for service paths, maintenance platforms, trench covers, stair treads, drainage areas and industrial flooring.
