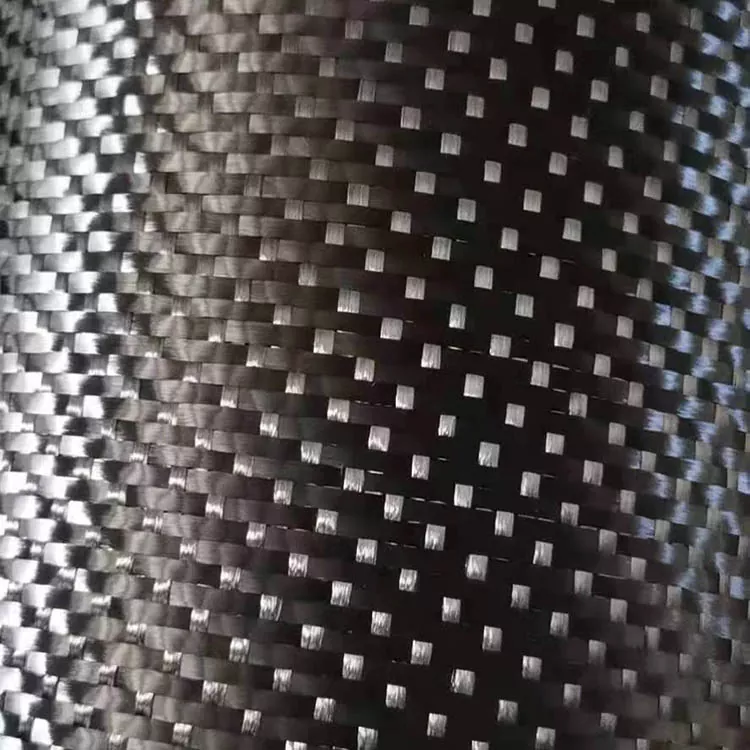

Carbon Fiber Cloth for Sports Equipment

Carbon Fiber Cloth for Sports Equipment is available for molded sporting goods and components where the reinforcement needs to fit a defined material and production specification. Yuruis supplies the material in customized weights, thicknesses and dimensions for applications including bicycle components, racket frames, paddles and other composite sports products.

The required cloth is normally selected together with the laminate and molding method. Fabric weight, thickness, resin system and ply arrangement can vary between different parts, even when they are used in the same type of sports equipment.

For projects based on an existing material, the current specification or a physical sample can be used as a reference when defining the required carbon fiber cloth.

Material Requirements for Sports Components

A bicycle part, racket frame and paddle blade do not necessarily require the same fabric specification. The required weight and thickness depend on the part dimensions, laminate construction and the way the composite is molded.

The carbon fiber itself is only one part of the material system. Resin selection, fiber orientation, number of plies and consolidation conditions also affect the properties of the finished laminate.

For a replacement material, it is useful to compare the existing fabric weight, thickness, width and resin system rather than relying only on a general description such as lightweight or high strength.

Surface Finish Options

When carbon fiber remains exposed on a finished sports product, the surface specification becomes part of the material requirement. It can also be relevant when the molded part will receive a transparent coating.

The listed surface options are:

Glossy · Matte · 50% Glossy

The final appearance depends not only on the supplied surface but also on resin distribution, molding, curing and subsequent finishing. For this reason, the required surface finish should be considered together with the production method.

Specification

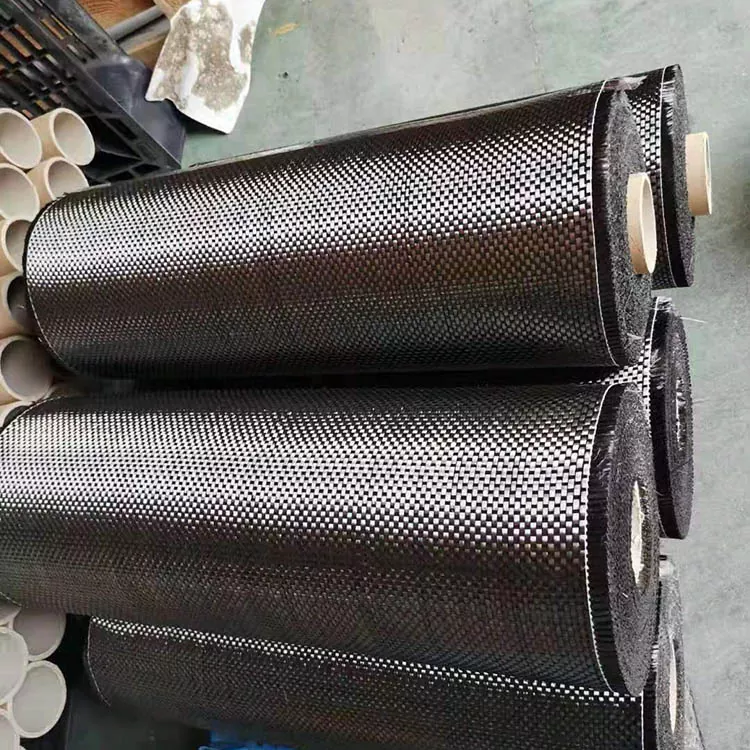

The material is available in standard widths of 1 m and 1.25 m, with other dimensions, weight and thickness available according to the stated requirements.

The following specifications are based on the listed product information.

Production Method and Material Matching

The same carbon fiber cloth can behave differently depending on how it is combined with resin and formed into the final part. Wet lay-up, prepreg processing, compression molding and other methods have different requirements for resin flow, handling and consolidation.

When requesting a material for an existing production line, the molding method should therefore be provided together with the required fabric weight, thickness and dimensions. This makes it easier to assess whether the proposed material fits the current process.

If the material is being replaced, an existing technical data sheet or sample can be used to compare the basic construction and physical dimensions before production.

Applications

Carbon Fiber Cloth for Sports Equipment can be used in bicycle components, racket frames, paddles, golf equipment and other molded composite sporting goods.

The required material varies with the part. A structural bicycle component may use a different laminate arrangement from a racket frame, while a visible paddle surface may place greater importance on the fabric finish and appearance.

For painted or covered components, surface appearance may be less critical than the fabric specification and compatibility with the selected resin and molding process.

Information for Material Selection

For a new material inquiry, the following information is useful:

· Component or sports equipment type

· Fabric weight

· Required thickness

· Width and length

· Surface finish

· Resin system

· Molding method

· Required quantity

If an existing material is already in production, its specification, technical data sheet or sample can be provided as a reference.

FAQ

What sports products can use this material?

It can be used for bicycle components, racket frames, paddles, golf equipment and other composite sporting goods. The required material depends on the structure and manufacturing method of the specific part.

Can the dimensions be customized?

Yes. Weight, dimensions, thickness and length can be specified according to customer requirements. The listed widths are 1 m and 1.25 m.

What surface finishes are available?

The listed options are glossy, matte and 50% glossy. The selection can be based on the intended appearance and subsequent finishing process.

What information should be provided for a quotation?

Useful information includes the component type, fabric weight, thickness, dimensions, resin system, molding method and required quantity. An existing specification or sample can also be provided for reference.

What is the listed production capacity?

The supplied product information lists a production capacity of 2 million m²/year. Actual production scheduling depends on the required specification and order quantity.

What are the listed payment terms?

The supplied company information lists LC, T/T, D/P, PayPal, Western Union and small-amount payment options. The applicable payment method should be confirmed for the specific order.

What is the listed MOQ?

The supplied product information lists 30 tons. The applicable MOQ should be confirmed with Yuruis, particularly for customized specifications.

What is the production lead time?

The provided information indicates peak-season and off-season production lead times within 15 working days. Actual timing should be confirmed according to the specification, quantity and production schedule.
