Twill 3K Prepreg Carbon Fiber

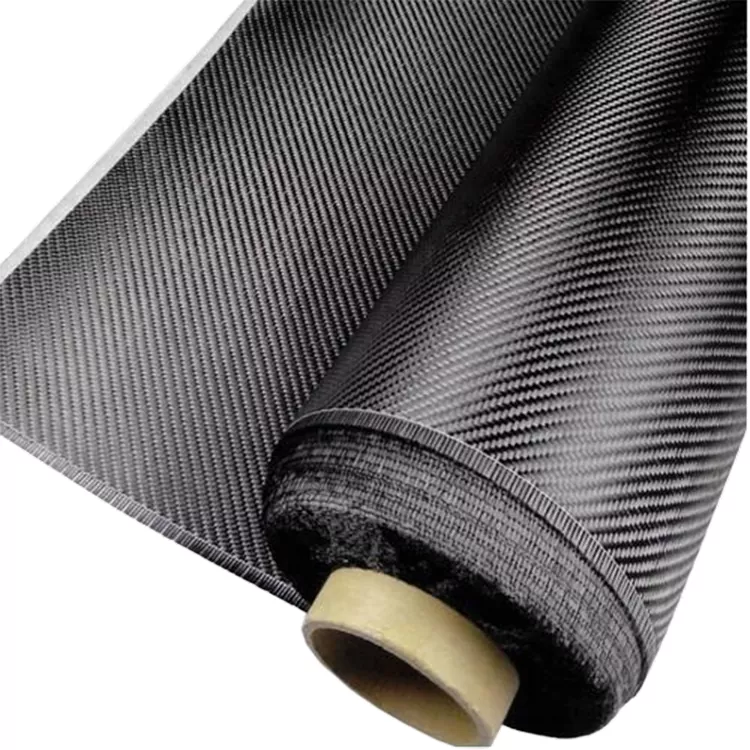

Twill 3K Prepreg Carbon Fiber combines a 3K carbon fiber reinforcement, twill weave and pre-impregnated resin in one material. The twill construction creates a recognizable diagonal pattern, while the prepreg format provides a controlled material for composite lay-up and molding.

In this specification, “3K” refers to a carbon fiber tow containing approximately 3,000 individual filaments. “Twill” describes the yarn interlacing pattern, while “prepreg” means that the carbon fiber has already been impregnated with a resin matrix before molding. These three characteristics describe different aspects of the material and should be considered separately when selecting a composite reinforcement.

Twill Weave and Prepreg Structure

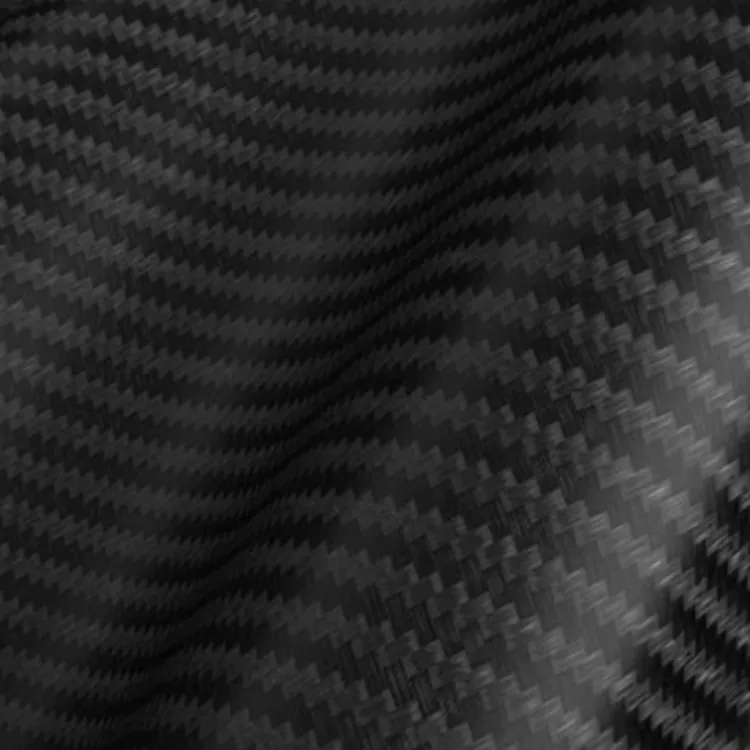

The twill structure affects the appearance and handling of the reinforcement during lay-up. Compared with a plain weave, the diagonal pattern is more visible and the fabric can follow moderate curves and shaped mold surfaces with less restriction to fabric movement.

The prepreg condition is a separate consideration. Unlike dry carbon fiber fabric, the reinforcement is supplied with resin already introduced into the material. This provides a defined starting point for the molding process, while the final composite properties depend on the carbon fiber grade, resin system, fiber orientation, laminate thickness, fiber volume fraction and curing conditions.

Twill and Plain Weave

The choice between twill and plain weave is usually related to surface appearance, fabric handling and the geometry of the finished part. Twill provides the characteristic diagonal pattern, while plain weave has a regular over-under structure and can provide a more stable fabric construction during conventional lay-up.

Material Selection by Manufacturing Process

It is one option within a wider range of carbon fiber reinforcement formats. The appropriate material depends on whether the production process requires a pre-impregnated system, dry fabric, unidirectional reinforcement or a different resin technology.

Application Areas

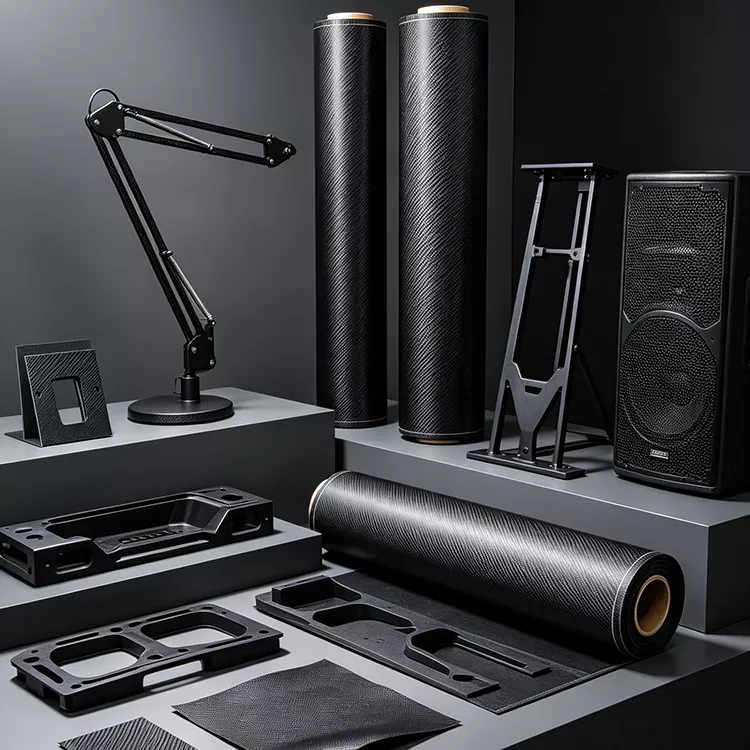

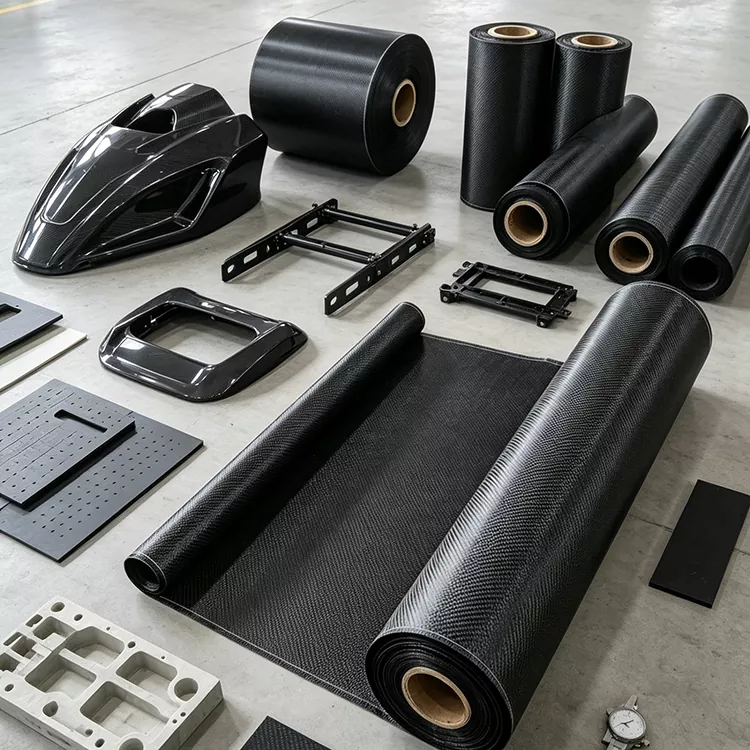

The material can be considered for composite parts where the combination of carbon fiber reinforcement, twill surface pattern and prepreg processing fits the production requirements. The final laminate design should be established according to the part geometry, load conditions and molding process.

Sports Equipment

Bicycle components, racket structures, paddles, golf-related components and other sporting products can use this material when a controlled laminate structure and visible carbon surface are required.

Automotive Components

Applications can include interior components, lightweight panels, trim, reinforcement and performance-oriented composite components. Fiber orientation, laminate thickness and resin characteristics should be selected according to the design and manufacturing requirements of each component.

Industrial Composite Parts

Covers, housings, panels, brackets and lightweight structural components are potential applications where reinforcement, dimensional requirements and surface appearance need to be considered together.

Electronic Housings

Carbon fiber can provide low weight and structural support for certain housing designs. Because carbon fiber is electrically conductive, electrical isolation requirements should be considered when the material is used around sensitive electronic components.

Specification

The standard product information is shown below. Size and other processing requirements can be confirmed according to the intended application and production method.

Prepreg Selection and Processing

For Twill 3K Prepreg Carbon Fiber, the resin system is an important part of the material specification because it affects storage, handling, curing and the final composite structure. The current specification lists the resin as a resin matrix to be confirmed, so the required resin system should be established before production.

For a production order, useful technical information may include resin type, resin content, curing temperature, curing time, storage temperature, allowable out-time, molding pressure and the intended molding method. These parameters should be compatible with the customer's equipment and the geometry of the finished component.

Width and thickness should also be confirmed before production. For shaped components, mold geometry and laminate lay-up can affect material selection and cutting requirements. When the material is being introduced into repeat production, sample evaluation can help confirm handling, forming and curing conditions before larger quantities are scheduled.

What to Confirm Before Ordering

Before ordering, customers can provide the required width, thickness, quantity, component dimensions, molding method and expected curing conditions. If a specific resin system is required, the resin type and relevant processing parameters should also be included.

For visible carbon components, the required twill orientation and surface appearance should be discussed together with the mold design and finishing process. For engineering components, fiber orientation, laminate thickness and resin characteristics may have greater influence on the final part than weave appearance alone.

For custom requirements, drawings, laminate specifications or existing samples can be provided for material assessment. This information helps determine the appropriate material size and processing requirements before make-to-order production.

FAQ

What does 3K mean in the material?

3K refers to the approximate number of individual filaments in the carbon fiber tow, which is about 3,000 filaments. It describes the tow size and does not by itself define the strength or mechanical properties of the finished composite.

Why choose twill instead of plain weave?

Twill provides a recognizable diagonal pattern and can offer useful drape characteristics for shaped surfaces. The choice should be based on the required surface appearance, fabric handling, mold geometry and laminate design.

Is it supplied as dry carbon fiber fabric?

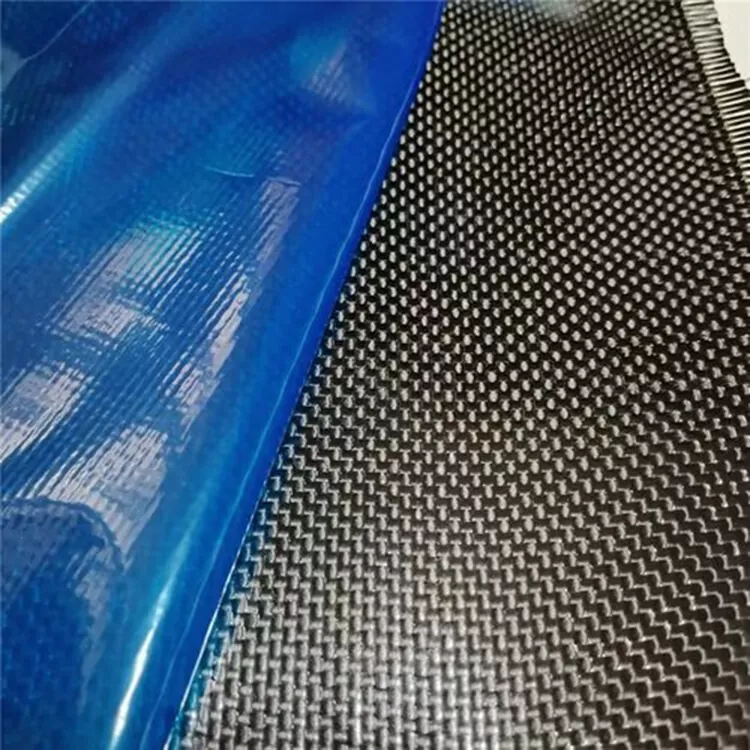

No. This material is supplied as prepreg, meaning the carbon fiber reinforcement has already been impregnated with resin. Dry carbon fiber fabric is supplied without the pre-applied resin and requires resin to be introduced during a later composite manufacturing process.

Can it be used for visible carbon fiber parts?

Yes. The twill construction creates a visible diagonal pattern that can form part of the finished surface design. Final appearance also depends on fiber alignment, resin system, mold surface, consolidation and finishing conditions.

What resin information should be confirmed before ordering?

Resin type, resin content, curing temperature, curing time and storage requirements should be confirmed before production. The appropriate parameters depend on the selected resin system and the customer's molding equipment.

Can the width and thickness be customized?

Yes. Width and thickness can be specified according to the customer's requirements. Providing the intended application, component dimensions and molding process helps define the required material format.

What information is needed for a quotation?

Please provide the required size, thickness, quantity, application, molding method and resin requirements if already defined. Drawings, laminate specifications or samples can also be provided when the material needs to match an existing composite component.
