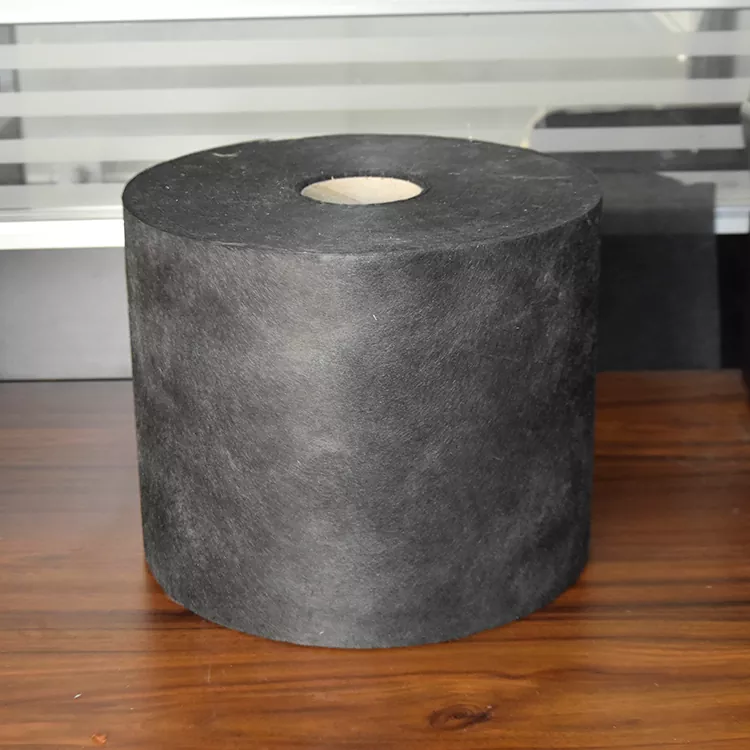

Industrial Carbon Fiber Surface Mat

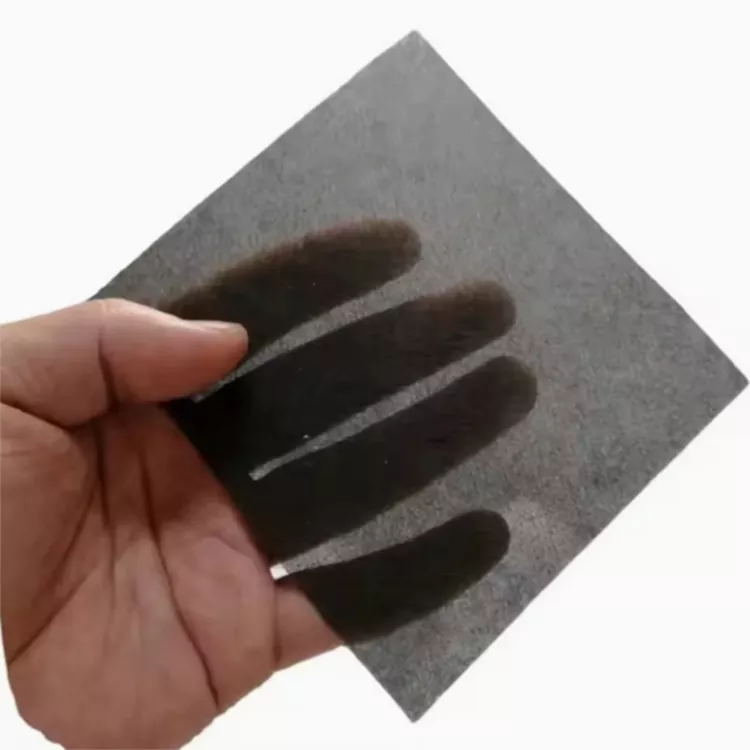

Industrial Carbon Fiber Surface Mat is a non-woven composite material made from chopped polyacrylonitrile-based carbon fiber. The fibers are distributed through the mat rather than arranged as continuous yarns in fixed directions. This construction is mainly used as a surface layer or secondary reinforcement within a composite laminate.

The non-woven structure is easier to position over curved and irregular profiles than a fixed woven pattern. When resin is introduced during lamination, it passes through the fiber network and bonds the mat with the surrounding composite layers. The behavior of the finished laminate is determined by the resin, fiber content, layer arrangement, and curing conditions rather than by the surface mat alone.

For molded composite parts, material selection usually starts with the function of the finished layer. Surface appearance, coverage of the underlying reinforcement, part geometry, electrical requirements, and the selected molding process can all affect the required specification.

How the Non-Woven Surface Layer Works

Surface coverage

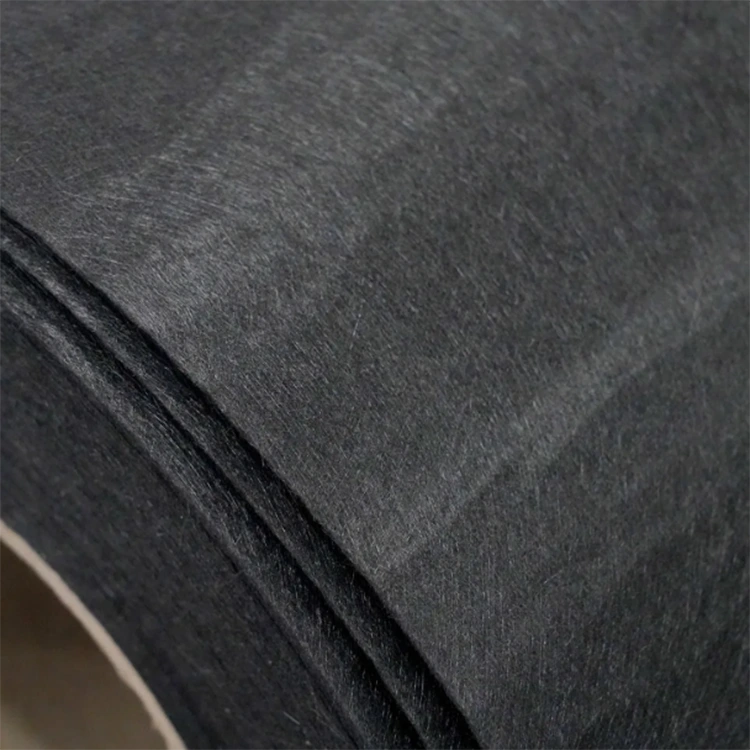

A woven carbon fiber fabric has a recognizable yarn pattern. Chopped fibers in a non-woven mat form a more irregular surface structure, which can help cover the texture of reinforcement underneath. The resulting appearance still depends on resin type, resin distribution, curing, sanding, coating, and other finishing operations.

Conformability during lamination

The fibers are not held in a fixed warp-and-weft arrangement. This allows the material to be positioned over curved sections, corners, transitions, and other molded profiles without following the directional structure of a woven fabric.

Position within the laminate

The surface mat is generally used as part of a laminate rather than as the primary structural reinforcement. Its contribution to the finished component depends on where it is placed, how it is bonded to adjacent layers, and how the complete laminate is designed.

Choosing the Material for the Finished Component

The same surface material may be used in different composite products, but the reason for using it is not always the same. The application, laminate construction, operating environment, and manufacturing process should be considered together.

For chemical-service components, the carbon fiber mat is only one part of the construction. Chemical resistance needs to be established from the complete laminate, including the resin system, chemical medium, concentration, temperature, exposure time, and laminate thickness.

For electrical applications, carbon fiber provides electrical conductivity within the material. Whether that conductivity is sufficient for a particular shielding or grounding design depends on fiber contact, layer continuity, connection points, component geometry, and the complete electrical design.

Processing and Specification Considerations

An appropriate specification cannot be determined from the product name alone. The intended molding process and finished part normally provide the starting point for material selection.

Resin compatibility

Epoxy, polyester, vinyl ester, and other resin systems differ in viscosity, wet-out behavior, curing temperature, and final matrix properties. These factors affect how the chopped-fiber mat becomes integrated into the laminate.

Molding process

Hand lay-up, vacuum-assisted processing, compression molding, and other composite processes place different demands on material handling and resin penetration. The required mat configuration should be considered together with the production method.

Part geometry

Flat panels, deep curves, narrow corners, and complex molded profiles may require different cutting and positioning arrangements. Width and length requirements should therefore be based on the actual component dimensions rather than selected only from standard roll sizes.

Surface finish

Glossy, matte, and semi-gloss options can be used for different finished-product requirements. The appearance after curing is influenced by the mat, resin distribution, mold surface, curing conditions, and subsequent finishing.

Industrial Composite Applications

FRP pipes, tanks and process equipment

The material can form part of the laminate used in pipes, tanks, chemical containers, and other FRP equipment. For these products, the surface layer and structural reinforcement should be designed separately according to the service conditions.

Electrical and electronic enclosures

The conductive nature of carbon fiber makes the material relevant to selected composite housings and enclosures. Where electromagnetic or RF shielding is required, the shielding performance needs to be verified on the finished enclosure rather than inferred from the dry mat alone.

Automotive and molded components

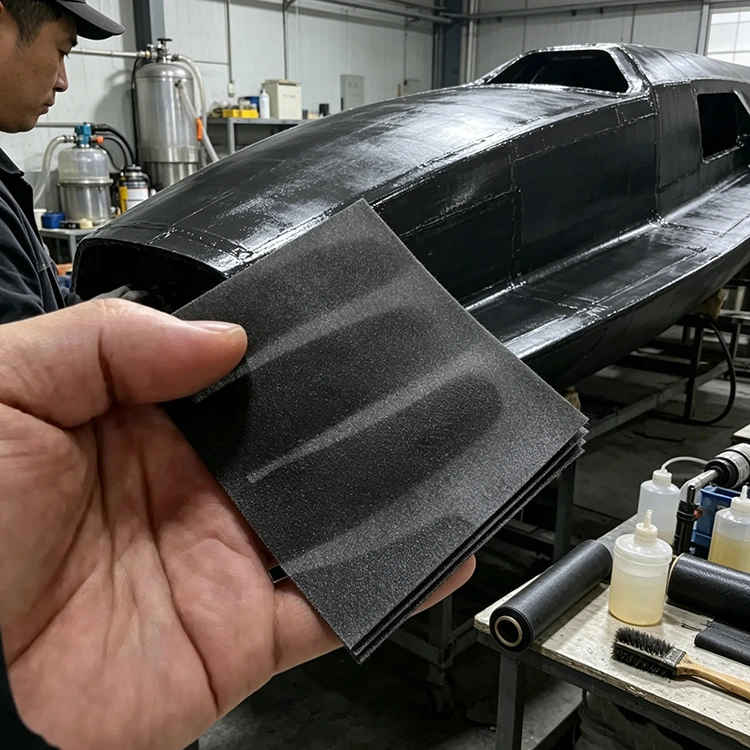

Automotive and other molded composite parts may use a non-woven carbon fiber surface layer where appearance, geometry, weight, and laminate construction need to be considered together. The actual material position should follow the component design.

Sports and industrial products

The material may also be incorporated into selected sports equipment, covers, housings, and other molded composite products. Areal weight, thickness, surface finish, and processing method should be established before production.

Available Specifications

Production and Supply Information

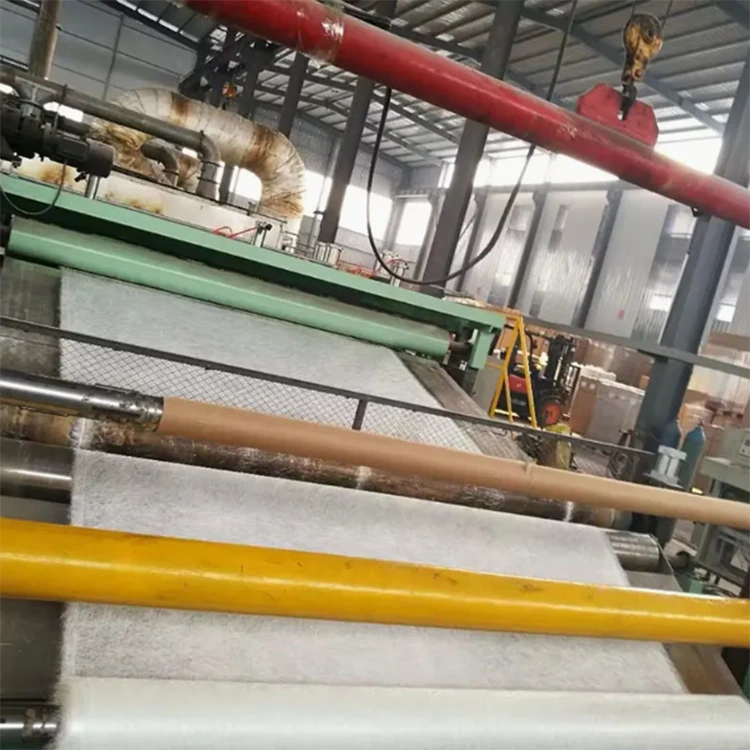

Yuruis has been engaged in fiber composite material manufacturing since 2017. Its product range includes carbon fiber materials, fiberglass materials, and FRP-related products, with production based in Taizhou, Jiangsu Province, China.

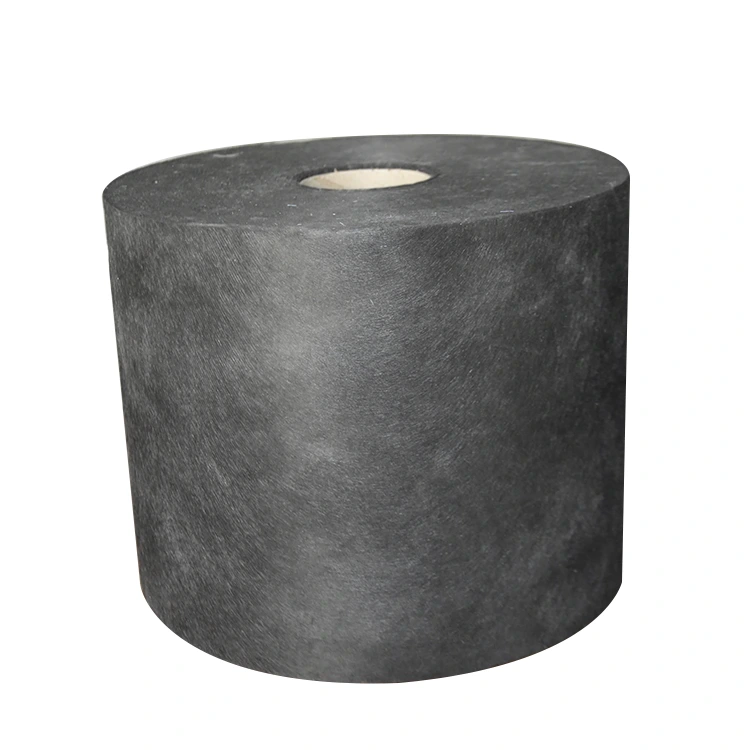

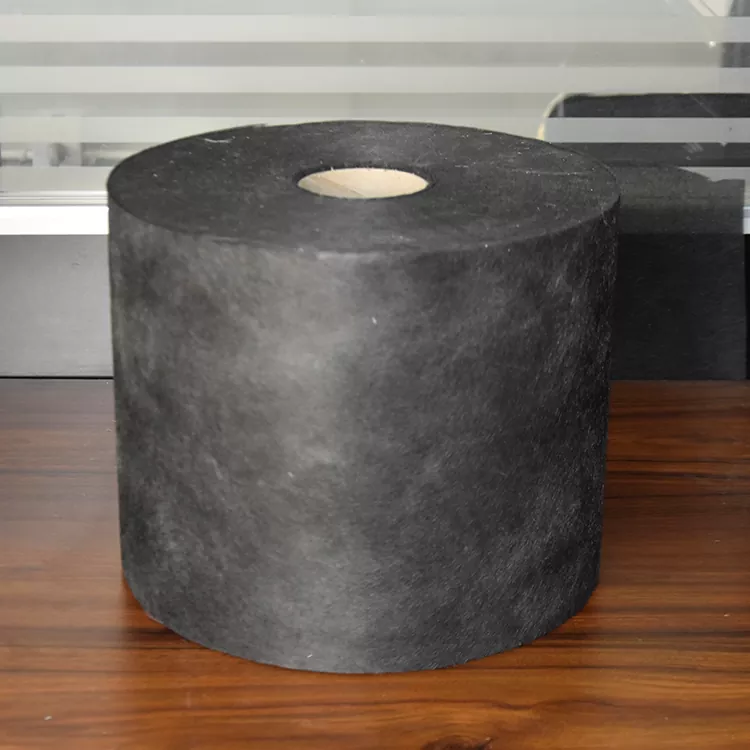

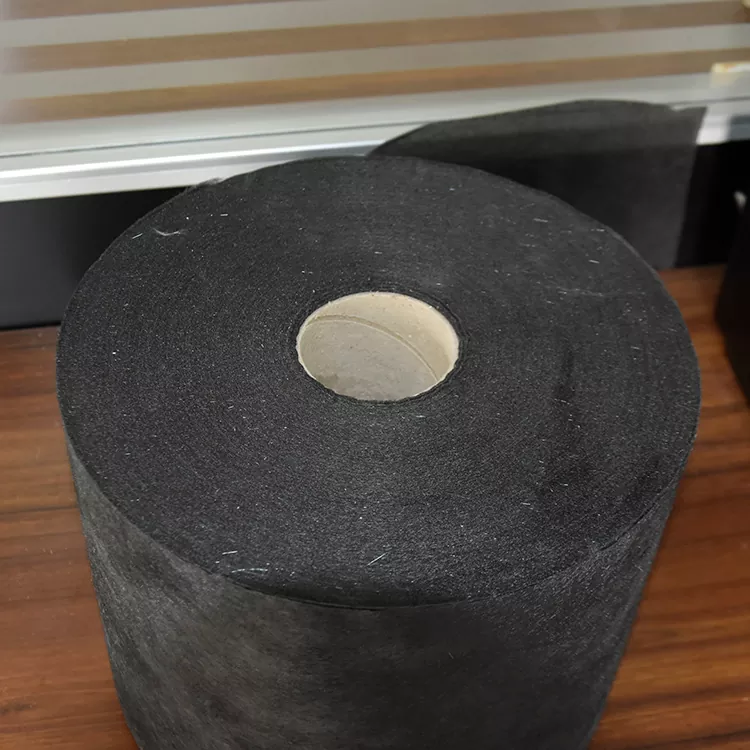

The listed production capacity for this material is 2 million m² per year. The standard width options are 1 m and 1.25 m, while thickness, length, and overall dimensions can be specified for individual production requirements.

For repeat orders, maintaining the same material specification is important for process consistency. Application, molding method, required dimensions, estimated quantity, and destination should be included in the initial inquiry so that the production requirement is clearly defined.

Information for a Product Inquiry

When requesting an Industrial Carbon Fiber Surface Mat quotation, the following information is useful for checking the required specification:

Application

FRP tank, pipe, automotive component, electronic enclosure, sports equipment, industrial housing, or another composite product.

Material requirement

Required width, thickness, length, dimensions, surface finish, and any application-specific requirements.

Production process

Hand lay-up, vacuum-assisted processing, molding, prepreg-related processing, or another composite manufacturing method.

Order quantity

Sample requirement, trial quantity, estimated monthly consumption, or regular production volume.

Delivery information

Destination country and preferred packaging or shipping arrangement.

Clear production information reduces specification gaps during quotation and provides a more practical basis for evaluating material compatibility with the intended composite process.

FAQ

1. What is this carbon fiber surface mat used for?

It is primarily used as a non-woven surface layer or secondary reinforcement in composite laminates. Applications include FRP equipment, molded housings, automotive components, sports products, and selected electrical or electronic enclosures.

2. How does it differ from woven carbon fiber fabric?

Woven fabric uses continuous fibers arranged in defined directions and is generally selected when directional reinforcement is required. This material uses chopped fibers in a non-woven structure, which makes it useful for surface coverage and shaped areas where a fixed woven construction is not required.

3. Which resin systems can be used with the material?

Epoxy, polyester, vinyl ester, and other resin systems may be considered depending on the composite process. Compatibility should be checked against the actual resin formulation, wet-out behavior, curing conditions, and reinforcement arrangement.

4. Can the width, thickness, and length be customized?

Yes. The listed specifications include 1 m and 1.25 m widths, customized thickness, customer-requested length, and custom dimensions. The final specification should be confirmed before production.

5. Is it suitable for chemical-service composite equipment?

It can be incorporated into FRP pipes, tanks, containers, and process equipment. Chemical-service suitability must be evaluated for the complete laminate, including the resin, operating medium, concentration, temperature, exposure conditions, and expected service life.

6. Can it contribute to EMI or RF shielding?

Carbon fiber is electrically conductive and may contribute to shielding in a suitably designed composite enclosure. Actual shielding performance depends on conductive continuity, layer construction, grounding, component geometry, and the finished enclosure.
